Single Watch Winder

GC03-S104AB

Single watch winder

Glossy finish & PU interiors

5 rotating modes

Specification
Feature
Accessory
Download
Products Series

Mode No.	GC03-S104AB
Dimension(L.W.H)	130x130x150 mm
Package Dimension	245x210x245 mm
N.W.	0.91 kg
G.W.	1.41 kg
Capacity	1 watch
Rotor type	Mabuchi Motor made in Japan
Rotation program	5 Modes
Noise-free	Yes
Independable motor	Yes
Color	Mahogany outside + Black inside
Glass material	Acrylic
Outer material	MDF wood with piano painting
Inner material	Premium PU leather
Power supply	Battery & Adapter
Power plug type	Universal AC/DC adapter
Watch case fittable	Up to 85 mm
Watch band fittable	215-235 mm
Turn-and-Rest Program	Yes
Watch Cushion holder	Adjustable
Easy open	Yes
Working temperature	-19℃ to + 45℃
Power	I/P: AC 100-240V 50/60HZ 0.2A
	O/P：DC 3V,1.5A

Working Programs

Mode 1:

Winder is off.

Mode 2:

Winder rotates clockwise for 2 minutes, rests for 6 minutes, then repeats the cycle.

Mode 3:

Winder rotates counter-clockwise for 2 minutes, rests for 6 minutes, then repeats the cycle.

Mode 4:

Winder rotates clockwise for 2 minutes, rests for 6 minutes, rotates counterclockwise for 2 minutes, rests for 6 minutes, then repeats the cycle.

Mode 5:

Winder rotates clockwise for 5 minutes, counter-clockwise for 5 minutes, repeating this cycle for 3 hours, then rest for 9 hours before repeating the entire cycle from the beginning.

Operation

Step1: Load your watch in the pillow.

Step2: Plug in the adapter and turn on the power.

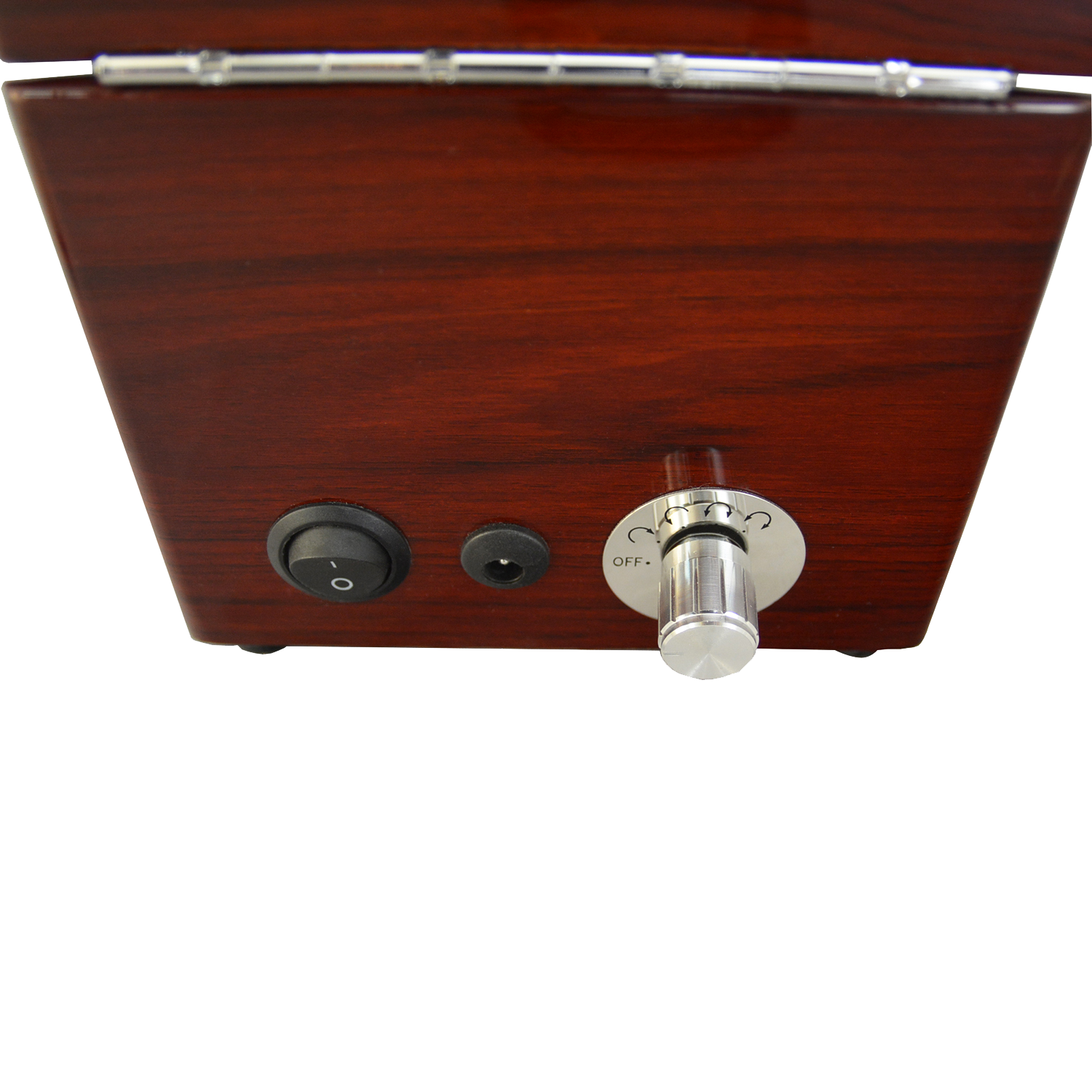

Step3: Select programs by program knob switch, 5 models are available.

The housing material is full handmade, processed by sufficient painting-drying-printing under modern handmade directions. Elegant piano painting finish and pu leather inlays fit in high-class interior decoration and make an unique culture atmosphere in different decoration styles. Visiable acrylic window for a good sight and protection.

l Single Japanese Mabuchi rotor
l 5 rotating modes for this series
l Other optional colours
l Precision ultra-quiet motor
l Overwinding protection
l Automatic sleep mode: Winder has an intellectual resting time to optimize the watch organs and winding mechanism
l Standardized power plug
l Easy operation
l Energy efficient
l Handmade wood case, pu leather inlays
l Adjustable watch holder sleeves suit for small or big watches
l Complex glossy lacquering procedures,each layer of paint based on complete drying
l Qualified material sources,developed workmanship,safe packagings,good product durability
l Suitable use in Bedroom, Study, Office, Hotel room,etc
